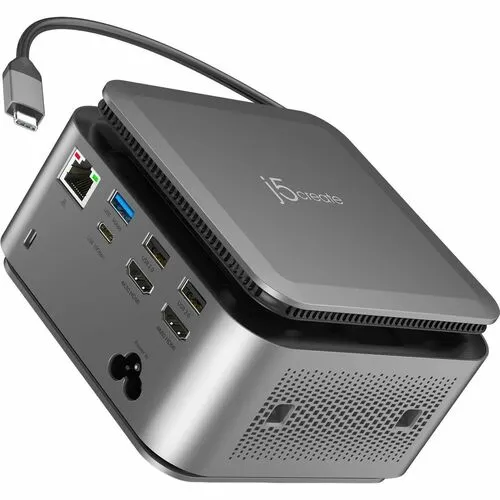

JCDP4140 - J5CREATE USB-C Powerbase Docking Station

All our products are Australian stock and come with a full manufacturer's warranty

Please login first.

Network & Communication
Ethernet Technology	Gigabit Ethernet
Power Description
Maximum Power Supply Wattage	163 W
Power Source Type	AC
Software
Operating System Supported	Windows 11
	Windows 10
	Mac OS X 10.14 Mojave
Miscellaneous
Package Contents	JCDP4140 Dual 4K Powerbase Docking Station with Cable Management Detachable 3 Pin Power Cord AU/EU/UK - 39.37 in (100 cm) 1 x Quick Installation Guide (QIG)
Compatibility	Apple M1~M5 MacBooks
System Requirements	Operating Systems: Windows® 10 or later - macOS® 10.14 or later Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 (please refer to the manufacturer of your computer for more information about your device) The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz
Brand Compatibility	Apple
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Weight (Approximate)	757.5 g
Form Factor	Desktop
Height	78.7 mm
Width	130.3 mm
Depth	130.3 mm
Product Color	Space Gray
Color Family	Grey
General Information
Product Type	Docking Station
Manufacturer Part Number	JCDP4140
Manufacturer Website Address	https://en.j5create.com
Packaged Quantity	1
Manufacturer	j5create
Product Model	JCDP4140
Product Name	JCDP4140 Dual 4K Powerbase Docking Station with Cable Management

Brand Name	j5create
Interfaces/Ports
HDMI	Yes
Network (RJ-45)	Yes
Number of HDMI Outputs	2
Total Number of USB Ports	8
Number of USB 2.0 Ports	2
Headphone/Microphone Combo Port	Yes
Number of RJ-45 Ports	1
USB Type-C	Yes
USB Type-C Detail	1 x USB-C Host 10 Gbps/DP Alt Mode/PD 100W (20V/5A), 1 x USB-C pure charging PD 3.0 27W (9V/3A),1 x USB-C® 10 Gbps 4.5W, 1 x USB-C 10 Gbps with PD 18W (9V/2A)
Number of USB Type-C Ports	4
Number of USB Type-A Ports	4
HDMI Refresh Rate	60 Hz
USB Power Delivery	100W
USB Type-A	Yes
Technical Information
Cable Length	69.49 cm
Device Supported	MacBook
	Notebook
	Smartphone
	Tablet
	Workstation
Connectivity Technology	Wired
Features	Non-slip Base
	Power Delivery Pass-through
	Compact
	Security Lock
Charging Capability	Yes
Memory Card Supported	microSD
	SD
Memory Card Reader	Yes
Maximum Data Transfer Rate	1.25 GB/s
Number of Displays Supported	2
Supported Resolutions	3840 x 2160
Screen Mode Supported	4K @ 60Hz
	4K @30Hz

If you have any questions about this product, please complete the form below and our team will be in touch shortly.

J5CREATE USB-C Powerbase Docking Station
