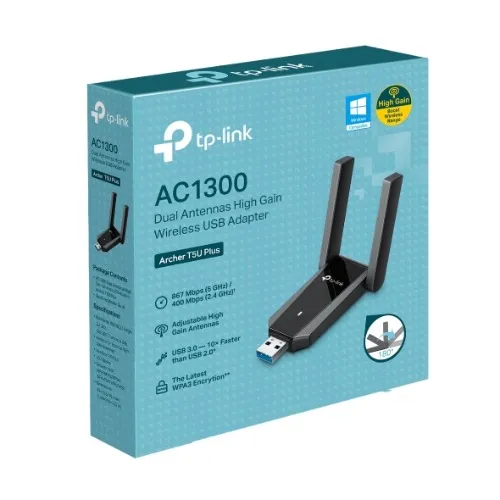

TP-Link Archer T5U Plus AC1300 Dual Antennas High Gain Wireless USB Adapter

TP-Link Archer T5U Plus AC1300 Dual Antennas High Gain Wireless USB Adapter

HARDWARE FEATURES

Interface USB 3.0
LED Status
Dimensions ( W x D x H ) 43 × 13.5 × 78.1 mm (1.69 × 0.53 × 3.07 in)
Antenna 2× External High Gain Antennas
WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n 2.4 GHz
IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz:
11ac VHT80: -63 dBm
11ac VHT20: -69 dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -76dBm
2.4 GHz:
11n HT40: -68dBm
11n HT20: -70dBm
11g 54Mbps: -74dBm
11b 11Mbps: -86dBm
Wireless Modes Infrastructure mode
Transmission Power 5 GHz: 20dBm(FCC) / 18dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 17dBm(CE) (EIRP)
SOFTWARE FEATURES

Security WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK
OTHERS

Certification FCC, CE, RoHS
Package Content AC1300 Dual Antennas High Gain Wireless USB Adapter Archer T5U Plus
Quick Installation Guide
System Requirements Supported operating systems include Windows 7/8/8.1/10/11
Environment Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
