9PX8KIRTG2 - Eaton 9PX 8KVA G2 1:1 Ups (WITH Internal Batter

All our products are Australian stock and come with a full manufacturer's warranty

Please login first.

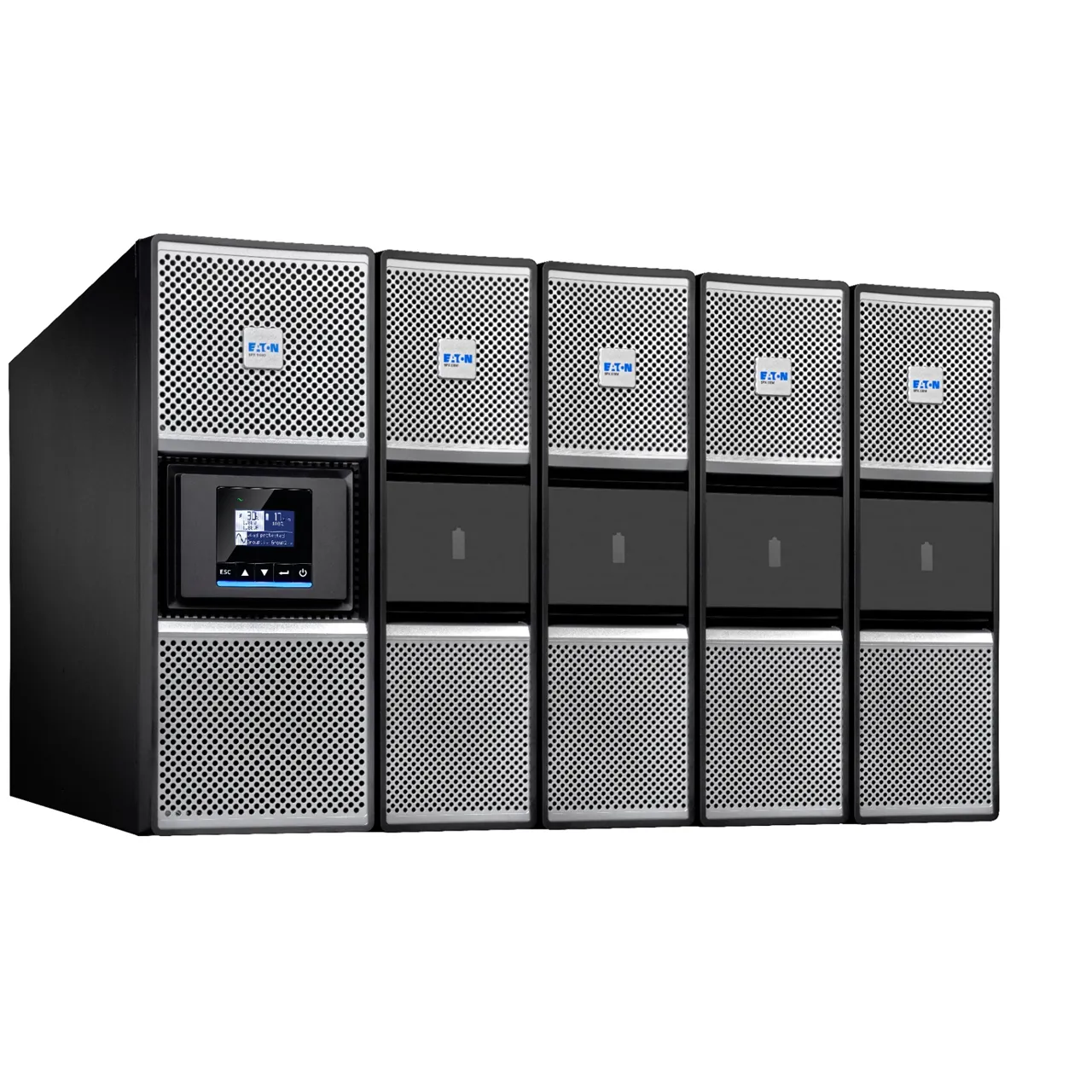

Eaton 9PX 8KVA G2 1:1 Ups (WITH Internal Batteries And Rail KIT) 4RU

Display & Graphics
Display	LCD/LED
Warranty
Additional Warranty Information	3 years warranty on electronics & batteries
Management
Network Management	RS-232
	Dry Contact
Battery Information
Hot Swappable	Yes
Battery Characteristics	Internal Battery
Replaceable Battery	Yes
Environmental Conditions
Sound Emission	38 dB
Minimum Operating Temperature	0°C
Maximum Operating Temperature	40°C
Miscellaneous
Package Contents	9PX G2 9PX8KIRTG2 8kVA Rack-mountable UPS Internal Batteries Rail Kit
Certifications & Standards	IEC/EN 62040-1 UL 1778 CSA 22.2 IEC/EN 62040 -2 FCC Class A IEC/EN 62040-3 (Performance) CE CB report (TUV) UL TLC
Energy Star	Yes
Interfaces/Ports
USB	Yes
Network (RJ-45)	Yes
Number of USB Ports	1
Serial Port	Yes
EPO Port	Yes
Expansion Slot Detail	2 x Communication Slot
Physical Characteristics
Weight (Approximate)	78.80 kg
Form Factor	Rack-mountable
Rack Height	3U
Height	174 mm
Width	440 mm
Depth	725 mm

General Information
Product Type	Double Conversion Online UPS
Manufacturer Part Number	9PX8KIRTG2
Manufacturer Website Address	http://www.eatoncorp.com.au
Manufacturer	Eaton Corporation
Product Model	9PX8KIRTG2
Product Name	9PX G2 9PX8KIRTG2 8kVA Rack-mountable UPS
Product Series	9PX G2
Brand Name	Eaton
Power Description
Input Voltage	120 V AC
	230 V AC
Output Voltage	220 V AC
	200 V AC
	240 V AC
	230 V AC
	208 V AC
Input Voltage Range	176 V AC - 276 V AC
	100 V AC - 276 V AC
Input Frequency	40 Hz
	60 Hz
	50 Hz
	70 Hz
Load Capacity (VA)	8 kVA
Load Capacity (Watt)	8 kW
Technical Information
Application/Usage	Mission Critical Equipment
	Data Center
	IT
	Network
	Server Room
	Network Closet
Features	Self Test
	Advanced Battery Management (ABM+)
Plug/Connector Type	Terminal Block
Phase	Single Phase
Receptacle Type	IEC 60320 C13
	IEC 60320 C19
	Terminal Block
Receptacle Detail	4 x IEC 60320 C19
	8 x IEC 60320 C13
Efficiency Detail	97.2% (Online Mode)
